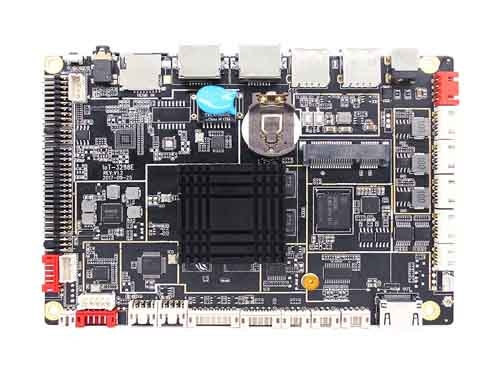

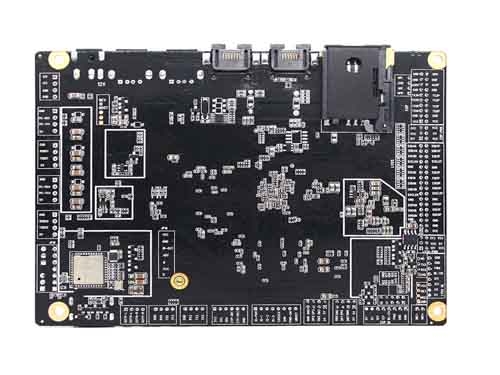

◆ 3.5-inch standard ultra-thin board type, onboard LVDS / HDMI OUT / EDP / HDMI IN and other interfaces. Suitable for self-service terminal equipment applications

◆ Built-in PCI-E 3G module, supporting dual Ethernet ports, HUAWEI, ZTE, LSAN and other PCI-E 3G / 4G modules, supporting Internet data and calls.

◆ Rich expansion interface: 6 expandable serial ports (4 * RS232, 2 * TTL), 11 * GPIO and ADC interface, 6 USB interfaces (4 pins, 2 standard USB interfaces), can meet various external Set the demand market.

◆ Maximum support for 3840x2160 4K decoding and various LCD screens with LVDS / eDP / HDMI interface, high definition. Support for cropping images of various sizes and resolutions.

◆ Support Android system customization, provide system call interface API reference source code, perfect support for client upper layer application development.

◆Supports a variety of mainstream touch screens such as infrared, optical, capacitor, resistor, touch foil, etc., supports non-driven touch screen HID configuration, no need to debug
