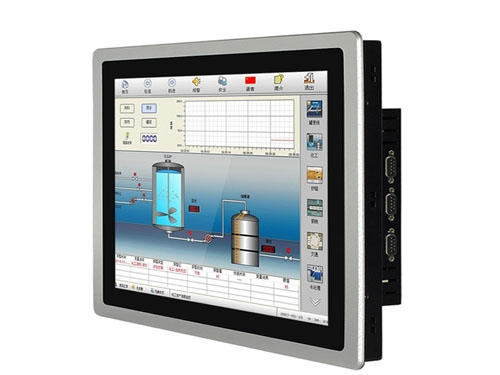

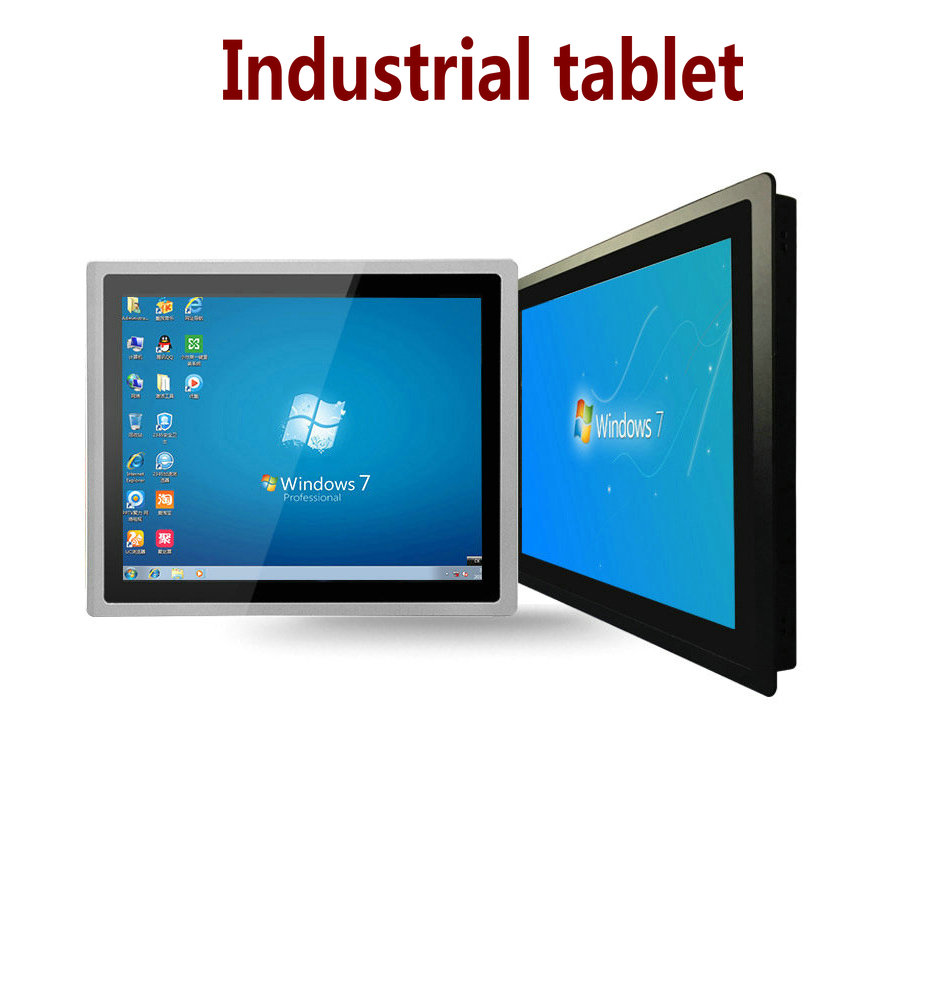

Factory address: HCR Industrial Park Building B 12 floor South East road NO.128 Shajing Shenzhen embedded mini computer x86/ito industrial ip65 tablet pc touch screen computer |
|

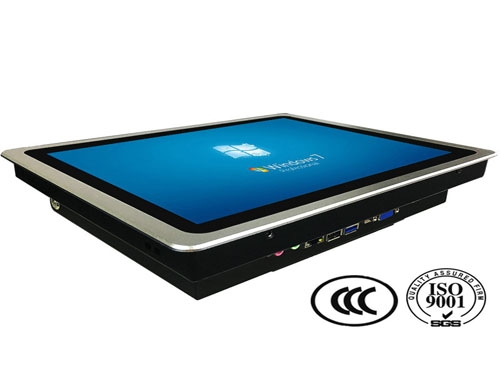

Display Feature
|
Display Screen
|
12.1″ TFT LED
|
|
Size ratio
|
4:3
|
|
|
Resolution
|
800 x 600 or 1024x768 optional
|
|
|
Brightness
|
300 cd/m2
|
|
|
Contrast ratio
|
400:1
|
|
|
Touch Screen
|
Resistive touch screen
|
|
|
Performance
|
Chipset
|
Intel®core i3/i5/i7
|
|
Memory
|
2G memory (DDRIII) , Max 8GB optional
|
|
|
Hardware Monitor
|
Monitors voltage, Temperature
|
|
|
Watchdog Timer
|
0 to 255 sec by software
|
|
|
Storage
|
SSD or HDD
|
|
|
Power
|
Power Supply
|
9~24VDC or 9-36V DC optional
|
|
Power Dissipation
|
15W (standby)
20W (rated power).
|
|
|

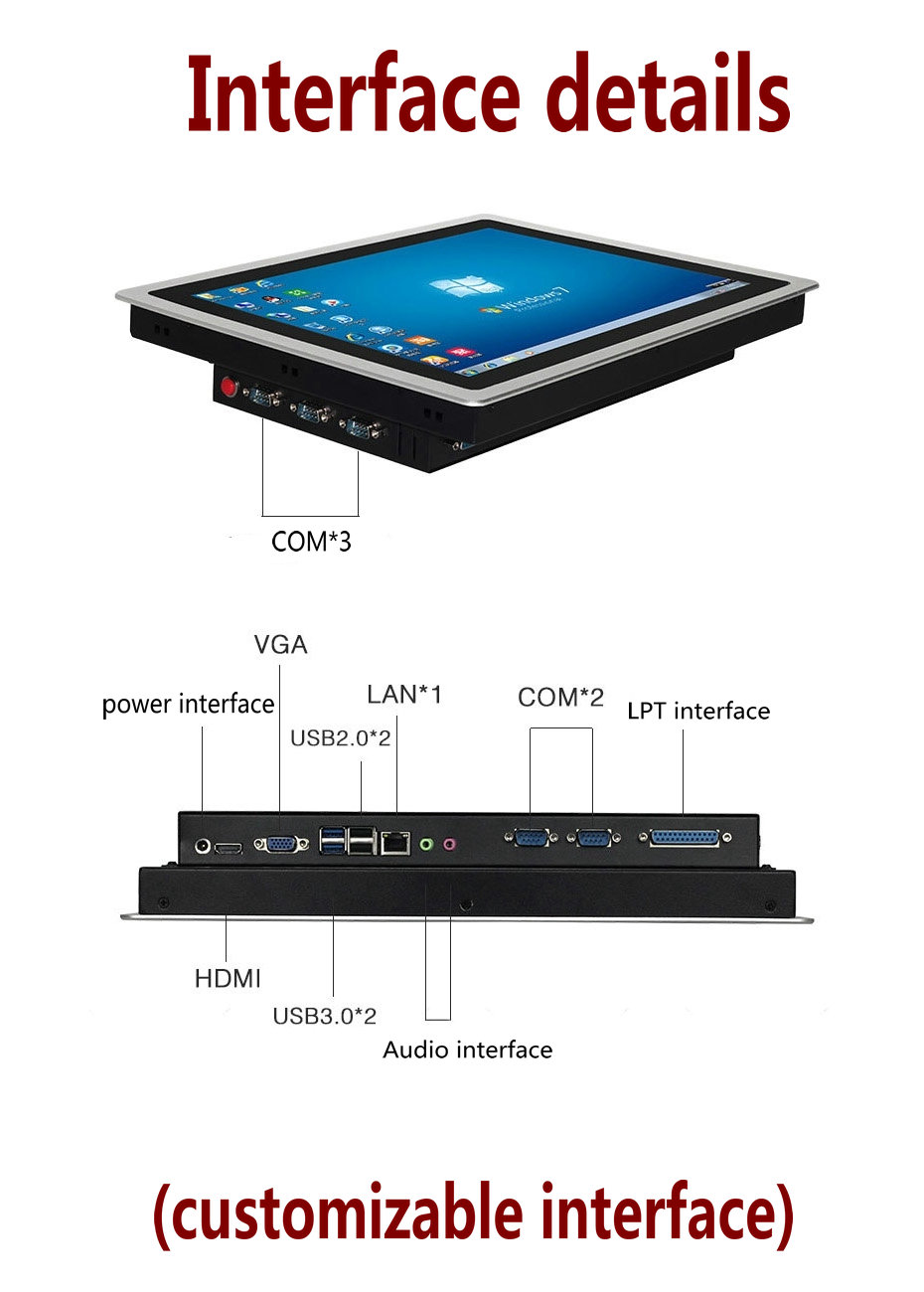

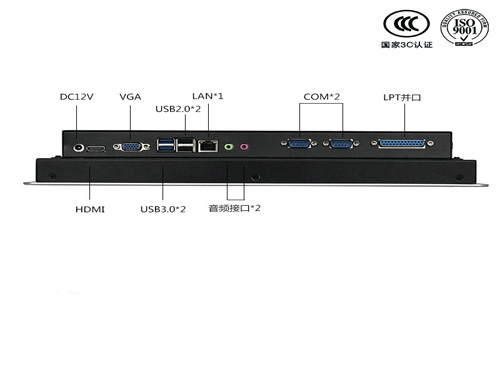

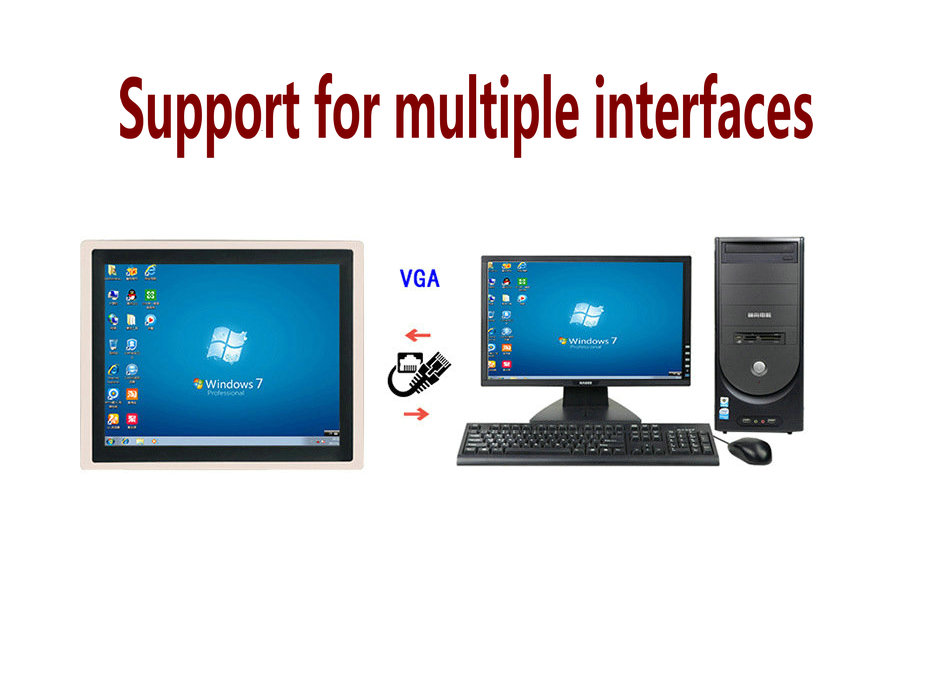

I/O Interface
|
USB
|
4*USB 3.0 Ports0
|
|
Serial Port
|
4*RS232 (1-2 *RS485/RS422 Optional)
|
|
|
Ethernet
|
2* Intel i211 GbE RJ45
|
|
|
Audio
|
1*Line out, i*Mic in
|
|
|
Display
|
1*VGA
|
|
|
GPIO
|
4 in/out optional
|
|
|
Expansion
|
1*Mini PCIe
|
|
|
O/S
|
O/S
|
Windows 7/ Windows 8/ Linux
|
|
Environmental
|
Anti-vibration
|
5-19Hz/1.0mm amplitude；19-200Hz/1.0g,acceleration
|
|
Anti-shock
|
10g acceleration, 11ms duration
|
|
|

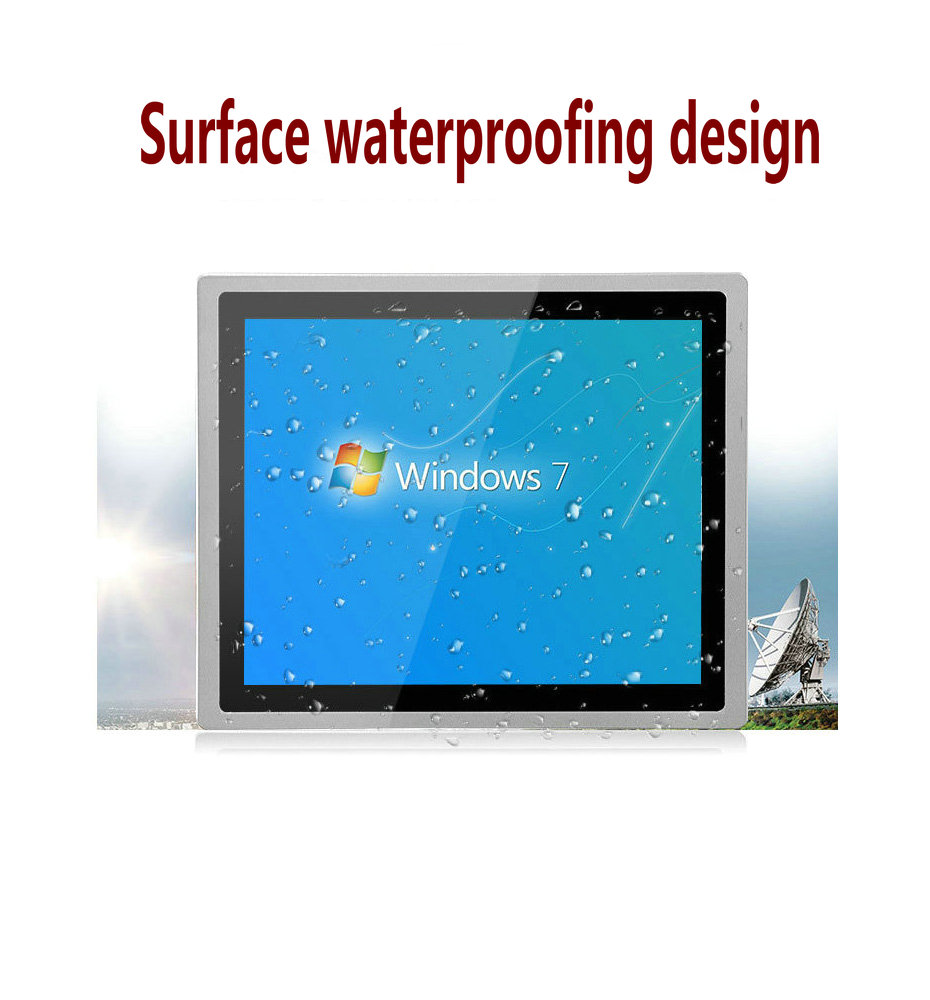

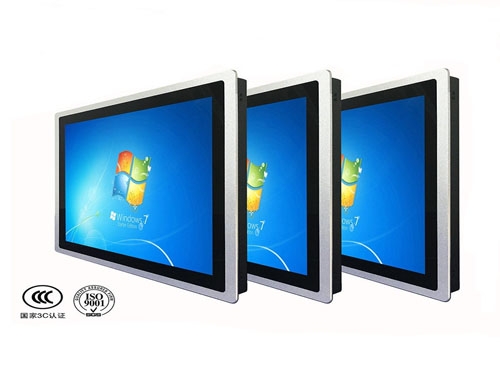

IP Level
|
Front panel IP65（Optional）
|
|
|
Reliability
|
MTBF≥50000h; MTTR≤0.5h
|
|
|
Operating Temperature
|
-20℃～60℃ (with air flow)
|
|
|
Storage Temperature
|
-30℃ ～70℃
|
|
|
Operating Humidity
|
95% @40℃, non-condensing
|
|
|
Mechanical
|
Dimensions
|
288mm (L) *226 mm (W) *60.6 mm (H)
|
|

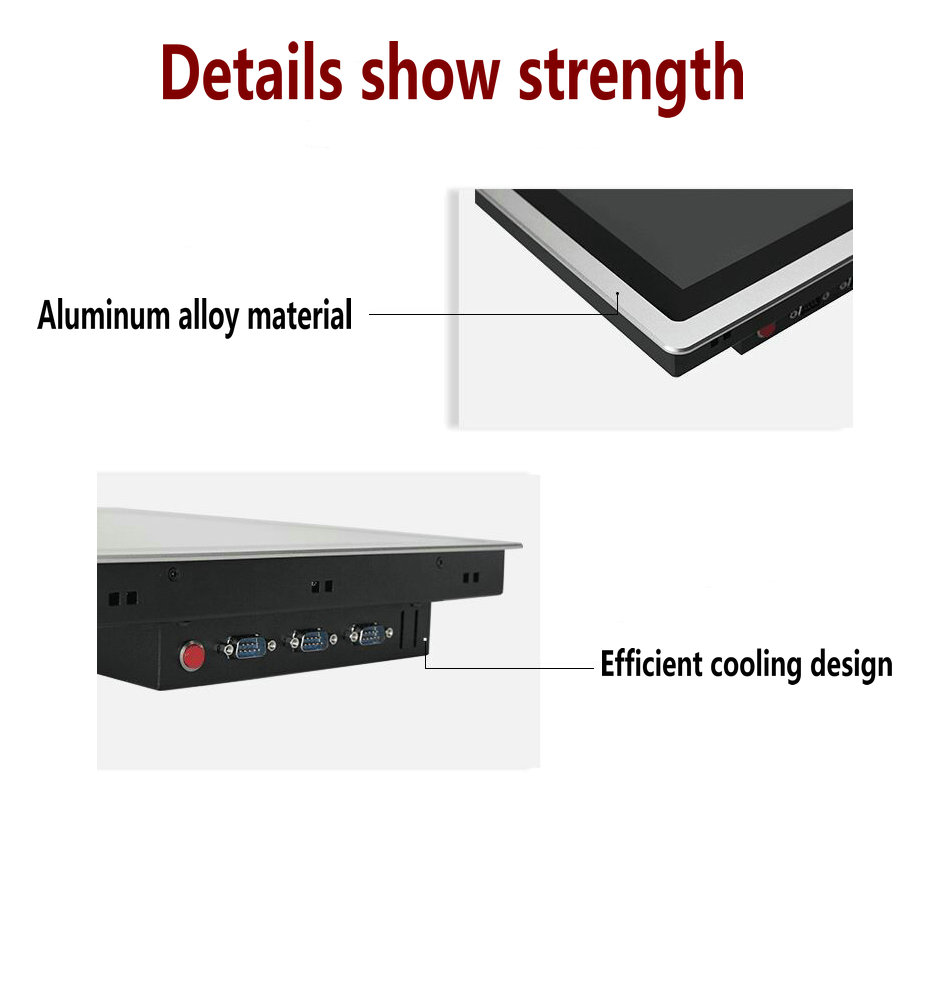

Material
|
High-strength and elegant Al-alloy panel
|
|
|
Weight
|
3.5kg/5.0kg (NET./GROSS.)
|
|
|
Color
|
Silver/Black/White
|
 |
