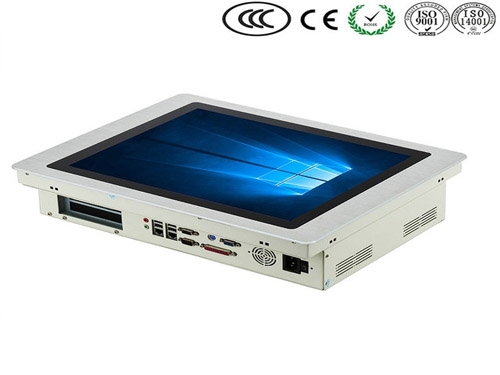

Display Feature

Display Screen

12.1″ TFT LED

Size ratio

4:3

Resolution

800 x 600 or 1024x768 optional

Brightness

300 cd/m2

Contrast ratio

400:1

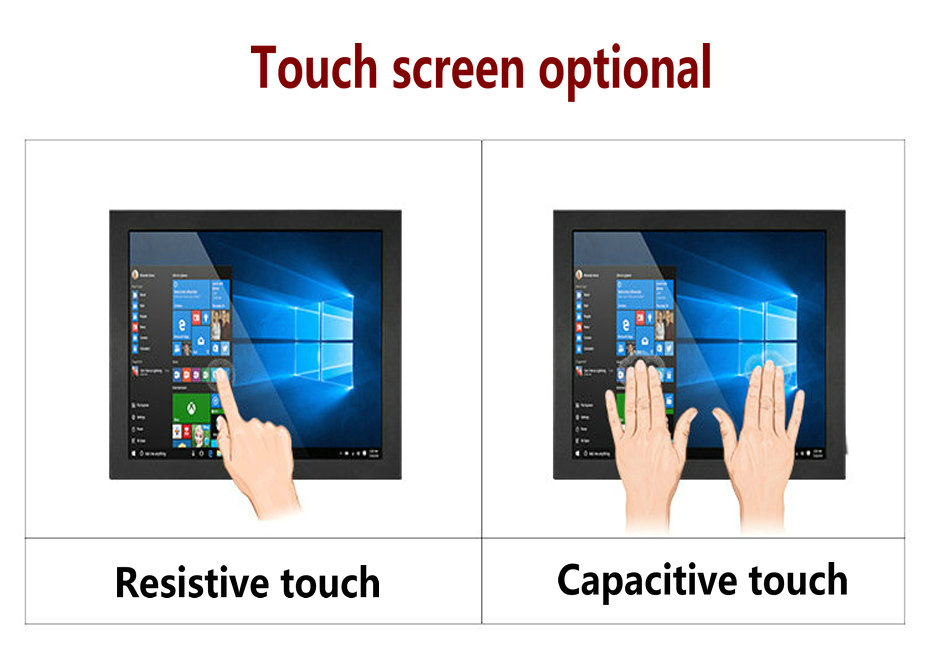

Touch Screen

Resistive touch screen

Performance

Chipset

Intel®core i3/i5/i7

Memory

2G memory (DDRIII) , Max 8GB optional

Hardware Monitor

Monitors voltage, Temperature

Watchdog Timer

 0 to 255 sec by software

Storage

SSD or HDD

Power

Power Supply

9~24VDC or 9-36V DC optional

Power Dissipation

15W (standby)

20W (rated power).

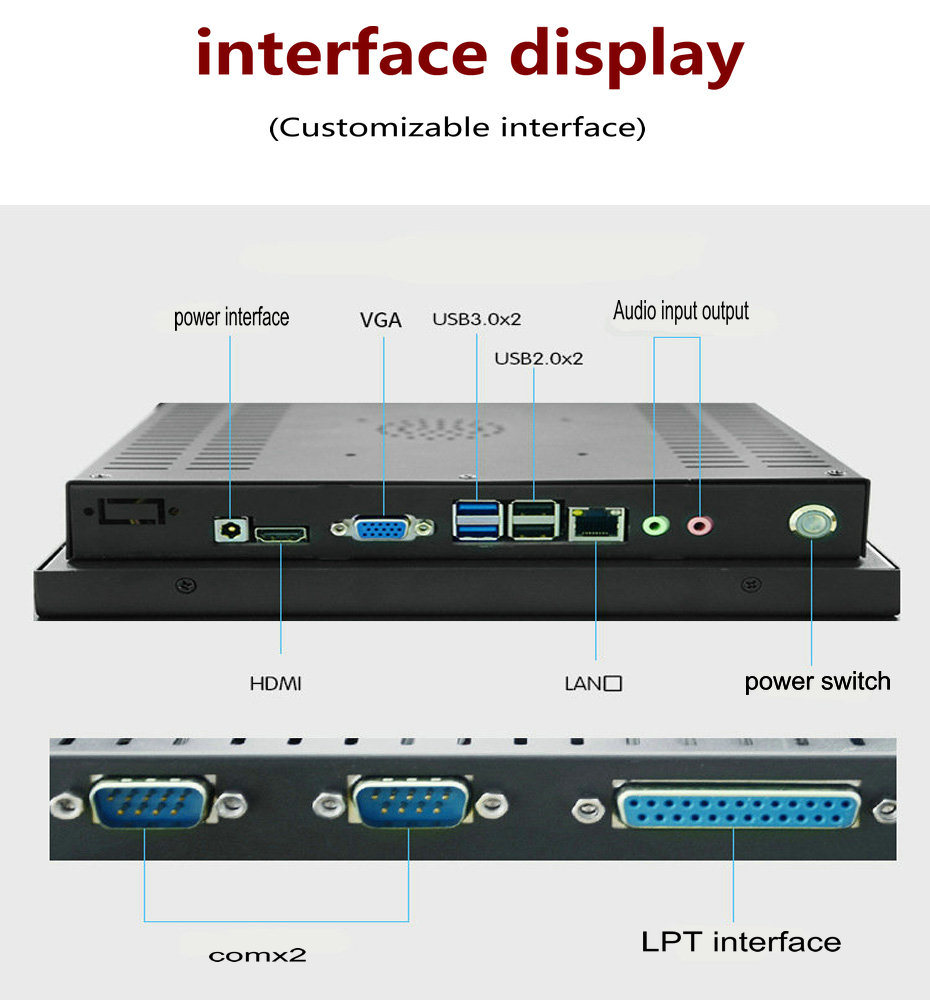

I/O Interface

USB

4*USB 3.0 Ports0

Serial Port

4*RS232 (1-2 *RS485/RS422 Optional)

Ethernet

2* Intel i211 GbE   RJ45

Audio

1*Line out, i*Mic in

Display

1*VGA

GPIO

4 in/out optional

Expansion

1*Mini PCIe

O/S

O/S

Windows 7/ Windows 8/ Linux

Environmental

Anti-vibration

5-19Hz/1.0mm amplitude；19-200Hz/1.0g,acceleration

Anti-shock

10g acceleration, 11ms duration

IP
